MnZn T25(OD)15(ID)12(Ht)mm high frequency toroidal ferrite core for Transformer

Ask Lasest Price
Model Number :	*T25(OD)15(ID)12(Ht)*
Brand Name :	Careful
Certification :	ISO 9001: 2015 ROHS REACH
Price :	$0.012-0.57/pieces
MOQ :	100pcs

Add to Cart

Product Details
Company Profile

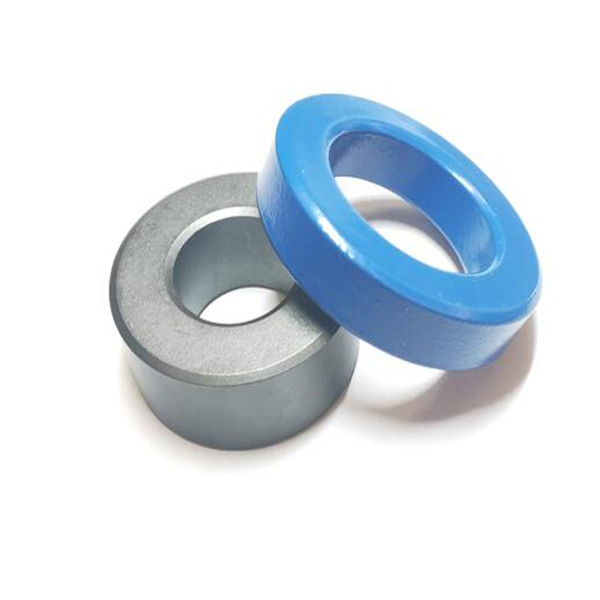

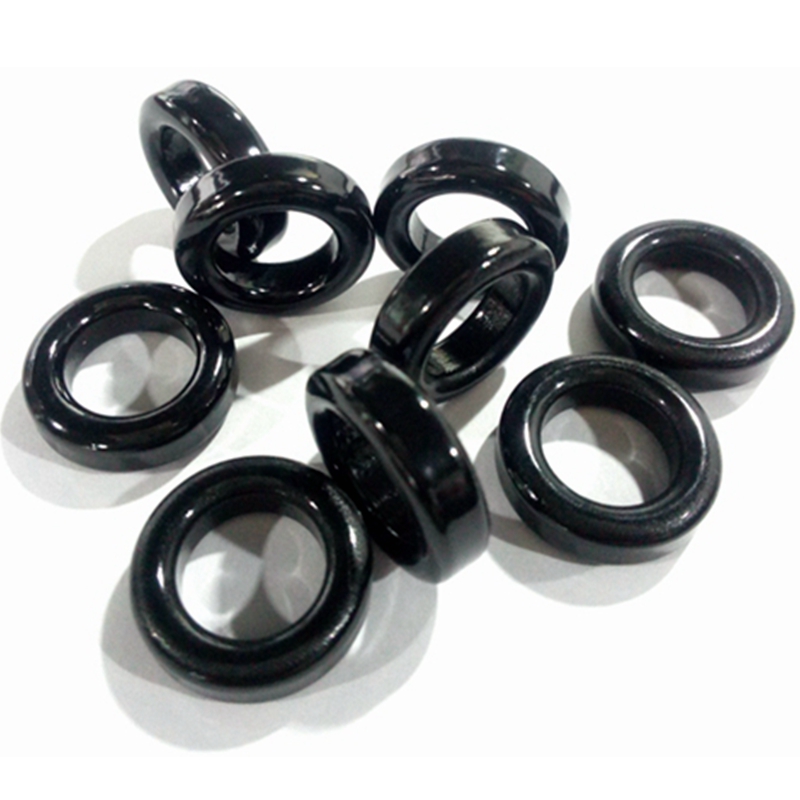

MnZn T25(OD)15(ID)12(Ht)mm high frequency toroidal ferrite core for Transformer

Careful direct sales MnZn T25(OD)*15(ID)*12(Ht)mm high frequency toroidal ferrite core for Transformer

Products Description

Place of Origin	China,Zhejiang
Brand Name	Careful
Model Number	T Type
Type	Soft
Composite	Ferrite Magnet
Shape	Toroidal
Application	Industrial Magnet
Tolerance	±10%
Frequency	1khz-500khz
Certification	ISO9001-2015, SGS-ROHS,REACH.
Material	MnZn Power Ferrite
Impedance	As customer's requirement
MOQ	No MOQ for the trial order

No.	T Specification	Dimensions:mm
No.	T Specification	A	B	C
1	2.3×1.2×0.8	2.3±0.3	1.2±0.3	0.8±0.3
2	3×3×1.2	3±0.3	3±0.3	1.2±0.3
3	3.5×1×1.6	3.5±0.3	1±0.3	1.6±0.3
4	3.5×2×1.5	3.5±0.3	2±0.3	1.5±0.3
5	3.5×2×1.7	3.5±0.3	2±0.3	1.7±0.3
6	3.5×2×1.8	3.5±0.3	2±0.3	1.8±0.3
7	3.5×2.5×1.5	3.5±0.3	2.5±0.3	1.5±0.3
8	3.5×3×1.5	3.5±0.3	3±0.3	1.5±0.3
9	3.5×3.2×1.5	3.5±0.3	3.2±0.3	1.5±0.3
10	3.5×3.2×1.6	3.5±0.3	3.2±0.3	1.6±0.3
11	3.5×3.25×1.3	3.5±0.3	3.25±0.3	1.3±0.3
12	3.5×3.25×1.8	3.5±0.3	3.25±0.3	1.8±0.3
13	3.5×3.5×1.8	3.5±0.3	3.5±0.3	1.8±0.3
14	4×1×2	4±0.3	1±0.3	2±0.3
15	4×2×2	4±0.3	2±0.3	2±0.3
16	4×3×2	4±0.3	3±0.3	2±0.3
17	4×4×1.5	4±0.3	4±0.3	1.5±0.3
18	4×4×2	4±0.3	4±0.3	2±0.3
19	4.1×3.2×1.6	4.1±0.3	3.2±0.3	1.6±0.3
20	4.4×2.5×2.8	4.4±0.3	2.5±0.3	2.8±0.3
21	5×1.5×2.5	5±0.3	1.5±0.3	2.5±0.3
22	5×2.5×2.4	5±0.3	2.5±0.3	2.4±0.3
23	5×2.5×3	5±0.3	2.5±0.3	3±0.3
24	5×3×2.3	5±0.3	3±0.3	2.3±0.3
25	5×3×3	5±0.3	3±0.3	3±0.3
26	5×5×2.5	5±0.3	5±0.3	2.5±0.3
27	5×5×3	5±0.3	5±0.3	3±0.3
28	6×2×3	6±0.3	2±0.3	3±0.3
29	6×3×3	6±0.3	3±0.3	3±0.3
30	6×3.8×3	6±0.3	3.8±0.3	3±0.3
31	6×4×3	6±0.3	4±0.3	3±0.3
32	6×4×4	6±0.3	4±0.3	4±0.3
33	6×6×3	6±0.3	6±0.3	3±0.3
34	6×6×4	6±0.3	6±0.3	4±0.3
35	6.14×3.2×5	6.14±0.3	3.2±0.3	5±0.3
36	6.2×3×3.2	6.2±0.3	3±0.3	3.2±0.3
37	6.5×3×4	6.5±0.3	3±0.3	4±0.3
38	6.5×5×4.3	6.5±0.3	5±0.3	4.3±0.3
39	7×4×4	7±0.3	4±0.3	4±0.3
40	7.3×4.3×3.3	7.3±0.3	4.3±0.3	3.3±0.3
41	7.5×2.5×3	7.5±0.3	2.5±0.3	3±0.3
42	7.5×2.5×5	7.5±0.3	2.5±0.3	5±0.3
43	7.75×3.6×5.4	7.75±0.3	3.6±0.3	5.4±0.3
44	7.75×7.75×4	7.75±0.3	7.75±0.3	4±0.3
45	8×2×4	8±0.3	2±0.3	4±0.3
46	8×2×5.5	8±0.3	2±0.3	5.5±0.3
47	8×2.5×4	8±0.3	2.5±0.3	4±0.3
48	8×2.5×5.5	8±0.3	2.5±0.3	5.5±0.3
No.	T Specification	Dimensions:mm
No.	T Specification	A	B	C
49	8×3×5	8±0.3	3±0.3	5±0.3
50	8×3.17×4.8	8±0.3	3.17±0.3	4.8±0.3
51	8×4×4	8±0.3	4±0.3	4±0.3
52	8×4×6	8±0.3	4±0.3	6±0.3
53	8×4.8×3.17	8±0.3	4.8±0.3	3.17±0.3
54	8×5×3	8±0.3	5±0.3	3±0.3
55	8×5×5	8±0.3	5±0.3	5±0.3
56	8×5×6	8±0.3	5±0.3	6±0.3
57	8×5.6×4.2	8±0.3	5.6±0.3	4.2±0.3
58	8×6.4×5.2	8±0.3	6.4±0.3	5.2±0.3
59	8×7×3.6	8±0.3	7±0.3	3.6±0.3
60	8×8×4	8±0.3	8±0.3	4±0.3
61	8×8×6	8±0.3	8±0.3	6±0.3
62	8.5×2×5	8.5±0.3	2±0.3	5±0.3
63	9×3×5	9±0.3	3±0.3	5±0.3
64	9×4×5	9±0.3	4±0.3	5±0.3
65	9×4.5×5	9±0.3	4.5±0.3	5±0.3
66	9×5×5	9±0.3	5±0.3	5±0.3
67	9×5.5×3	9±0.3	5.5±0.3	3±0.3
68	9×7×5	9±0.3	7±0.3	5±0.3
69	9×8×5	9±0.3	8±0.3	5±0.3
70	9×9×4	9±0.3	9±0.3	4±0.3
71	9.1×4.6×5	9.1±0.3	4.6±0.3	5±0.3
72	9.5×3.3×4.8	9.5±0.3	3.3±0.3	4.8±0.3
73	9.5×5×5	9.5±0.3	5±0.3	5±0.3
74	9.5×6.35×5	9.5±0.3	6.35±0.3	5±0.3
75	9.5×9.5×4.8	9.5±0.3	9.5±0.3	4.8±0.3
76	9.5×9.5×5	9.5±0.3	9.5±0.3	5±0.3
77	10×2×6	10±0.4	2±0.3	6±0.3
78	10×3×6	10±0.4	3±0.3	6±0.3
79	10×4×6	10±0.4	4±0.3	6±0.3
80	10×4×7	10±0.4	4±0.3	7±0.3
81	10×4.7×6	10±0.4	4.7±0.3	6±0.3
82	10×4.8×6.5	10±0.4	4.8±0.3	6.5±0.3
83	10×5×5	10±0.4	5±0.3	5±0.3
84	10×5×6	10±0.4	5±0.3	6±0.3
85	10×5×7	10±0.4	5±0.3	7±0.3
86	10×6×5	10±0.4	6±0.3	5±0.3
87	10×6×6	10±0.4	6±0.3	6±0.3
88	10×6.3×6	10±0.4	6.3±0.3	6±0.3
89	10×6.5×7	10±0.4	6.5±0.3	7±0.3
90	10×7×6	10±0.4	7±0.3	6±0.3
91	10×7×7	10±0.4	7±0.3	7±0.3
92	10×7.5×6	10±0.4	7.5±0.3	6±0.3
93	10×7.5×6.3	10±0.4	7.5±0.3	6.6±0.3
94	10×8×6	10±0.4	8±0.3	6±0.3
95	10×8×7	10±0.4	8±0.3	7±0.3
96	10×10×6.35	10±0.4	10±0.4	6.35±0.3
97	10×10×4.2	10±0.4	10±0.4	4.2±0.3
98	10×10×5	10±0.4	10±0.4	5±0.3
99	10×10×5.5	10±0.4	10±0.4	5.5±0.3
No.	T Specification	Dimensions:mm
No.	T Specification	A	B	C
100	10×10×7	10±0.4	10±0.4	7±0.3
101	10.4×10.4×5.8	10.4±0.4	10.4±0.4	5.8±0.3
102	10.5×8×6	10.5±0.4	8±0.3	6±0.3
103	11×8×5	11±0.4	8±0.3	5±0.3
104	11×8.5×5	11±0.4	8.5±0.3	5±0.3
105	11.5×9×5	11.5±0.4	9±0.3	5±0.3
106	12×3×5.5	12±0.4	3±0.3	5.5±0.3
107	12×4×6	12±0.4	4±0.3	6±0.3
108	12×4×7	12±0.4	4±0.3	7±0.3
109	12×4.5×8	12±0.4	4.5±0.3	8±0.3
110	12×5×4.75	12±0.4	5±0.3	4.75±0.3
111	12×5×5.6	12±0.4	5±0.3	5.6±0.3
112	12×5×6	12±0.4	5±0.3	6±0.3
113	12×5×6.5	12±0.4	5±0.3	6.5±0.3
114	12×5×7	12±0.4	5±0.3	7±0.3
115	12×5×8	12±0.4	5±0.3	8±0.3
116	12×5.5×7	12±0.4	5.5±0.3	7±0.3
117	12×5.5×7.3	12±0.4	5.5±0.3	7.3±0.3
118	12×6×6	12±0.4	6±0.3	6±0.3
119	12×6×7	12±0.4	6±0.3	7±0.3
120	12×7×8	12±0.4	7±0.3	8±0.3
121	12×7×8.5	12±0.4	7±0.3	8.5±0.3
122	12×8×6	12±0.4	8±0.3	6±0.3
123	12×8×7	12±0.4	8±0.3	7±0.3
124	12×9×5.6	12±0.4	9±0.3	5.6±0.3
125	12×9×6.5	12±0.4	9±0.3	6.5±0.3
126	12×9×7.3	12±0.4	9±0.3	7.3±0.3
127	12×9.5×5.6	12±0.4	9.5±0.3	5.6±0.3
128	12×10×5.6	12±0.4	10±0.4	5.6±0.3
129	12×10×6.5	12±0.4	10±0.4	6.5±0.3
130	12×10×7	12±0.4	10±0.4	7±0.3
131	12×12×5.6	12±0.4	12±0.4	5.6±0.3
132	12×12×7.3	12±0.4	12±0.4	7.3±0.3
133	12×12×8	12±0.4	12±0.4	8±0.3
134	12.1×7.3×15.5	12.1±0.4	7.3±0.3	15.5±0.4
135	12.3×11×8.1	12.3±0.4	11±0.4	8.1±0.3
136	12.5×12×8	12.5±0.4	12±0.4	8±0.3
137	12.7×3×7.9	12.7±0.4	3±0.3	7.9±0.3
138	12.7×4.8×7.9	12.7±0.4	4.8±0.3	7.9±0.3
139	12.7×5.1×7.9	12.7±0.4	5.1±0.3	7.9±0.3
140	12.7×6×7.9	12.7±0.4	6±0.3	7.9±0.3
141	12.7×6.35×7.9	12.7±0.4	6.35±0.3	7.9±0.3
142	12.7×7×7.9	12.7±0.4	7±0.3	7.9±0.3
143	12.7×7.52×7.9	12.7±0.4	7.52±0.3	7.9±0.3
144	12.7×7.8×7.9	12.7±0.4	7.8±0.3	7.9±0.3
145	12.7×10×8	12.7±0.4	10±0.4	8±0.3
146	12.7×10×10	12.7±0.4	10±0.4	10±0.4
147	12.7×12.7×7.5	12.7±0.4	12.7±0.4	7.5±0.3
148	12.7×12.7×7.9	12.7±0.4	12.7±0.4	7.9±0.3
149	12.7×12.7×11	12.7±0.4	12.7±0.4	11±0.4
No.	T Specification	Dimensions:mm
No.	T Specification	A	B	C
150	13×3×7	13±0.4	3±0.3	7±0.3
151	13×3.5×7	13±0.4	3.5±0.3	7±0.3
152	13×5×7	13±0.4	5±0.3	7±0.3
153	13×5×8	13±0.4	5±0.3	8±0.3
154	13×5.5×7	13±0.4	5.5±0.3	7±0.3
155	13×6×7	13±0.4	6±0.3	7±0.3
156	13×6×8	13±0.4	6±0.3	8±0.3
157	13×6.5×8	13±0.4	6.5±0.3	8±0.3
158	13×7×5	13±0.4	7±0.3	5±0.3
159	13×7×7	13±0.4	7±0.3	7±0.3
160	13×10×8.2	13±0.4	10±0.4	8.2±0.3
161	13×13×8	13±0.4	13±0.4	8±0.3
162	13.5×10×5	13.5±0.4	10±0.4	5±0.3
163	14×4×8	14±0.4	4±0.3	8±0.3
164	14×5×8	14±0.4	5±0.3	8±0.3
165	14×5×9	14±0.4	5±0.3	9±0.3
166	14×5×10	14±0.4	5±0.3	10±0.4
167	14×5.5×10	14±0.4	5.5±0.3	10±0.4
168	14×6×8	14±0.4	6±0.3	8±0.3
169	14×7×8	14±0.4	7±0.3	8±0.3
170	14×8×10	14±0.4	8±0.3	10±0.4
171	14×10×10	14±0.4	10±0.4	10±0.4
172	14×13×8	14±0.4	13±0.4	8±0.3
173	14×14×10	14±0.4	14±0.4	10±0.4
174	14.2×3×8	14.2±0.4	3±0.3	8±0.3
175	14.2×5×8	14.2±0.4	5±0.3	8±0.3
176	14.2×5×8.3	14.2±0.4	5±0.3	8.3±0.3
177	14.2×5.5×8	14.2±0.4	5.5±0.3	8±0.3
178	14.2×5.5×9	14.2±0.4	5.5±0.3	9±0.3
179	14.2×6.35×10	14.2±0.4	6.35±0.3	10±0.4
180	14.2×7×7.2	14.2±0.4	7±0.3	7.2±0.3
181	14.2×7×8	14.2±0.4	7±0.3	8±0.3
182	14.2×7×9	14.2±0.4	7±0.3	9±0.3
183	14.2×8×8.2	14.2±0.4	8±0.3	8.2±0.3
184	14.2×8×9	14.2±0.4	8±0.3	9±0.3
185	14.2×10×8	14.2±0.4	10±0.4	8±0.3
186	14.2×10.16×6.35	14.2±0.4	10.16±0.4	6.35±0.3
187	14.2×12×7.9	14.2±0.4	12±0.4	7.9±0.3
188	14.2×13.5×6.35	14.2±0.4	13.5±0.4	6.35±0.3
189	14.2×13.5×8.3	14.2±0.4	13.5±0.4	8.3±0.3
190	14.3×14.3×6.35	14.3±0.4	14.3±0.4	6.35±0.3
191	14.5×4×8	14.5±0.4	4±0.3	8±0.3

Product packaging

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Huzhou Careful Magnetism Co., Ltd. is a technically leading corporation, integrating production, management, research, development and service. Our company was established in 2001, formally known as Huzhou Cifeng Industry Corporation - a key enterprise in Huzhou City. Our company was assessed as "High and New Technology Enterprise in Zhejiang Province". We have more than 20 years of experience in the field, as our boom development, now we own 3 factoies to service more and more clinets.

Our company has over 1000 staff members, including 120 management and technology members. Our company has established a technological center. We have automatic magnetic material examination equipment at international level and the most advanced production line in our country. Our company mainly manufactures EMI and DY Magnetic cores with 2 categories and 300 specifications.

FAQ

1. Who are we?
We are based in Zhejiang, China, start from 2001, sell to Domestic Market(60.00%), Eastern Europe(10.00%), South Asia(5.00%), Eastern Asia(5.00%), North America(5.00%), Northern Europe(4.00%), South America(3.00%), Southern Europe(3.00%), Western Europe(2.00%), Oceania(1.00%), Central America(1.00%), Southeast Asia(1.00%). There are total about 1000+ people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3.What can you buy from us?
Soft Ferrite Core, Amorphous core, Inductors, NiZn ferrite.

4. Why should you buy from us not from other suppliers?
We are the biggest manufacture of ferrite core in China for more than 30 years, also with production line of Amorphous core, SMD core, inductors for years. We are already the supplier of Microsoft, GREE, Midea, SAMSUNG, ASUS, Panasonic, etc.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Escrow; Language Spoken: English, Chinese.
